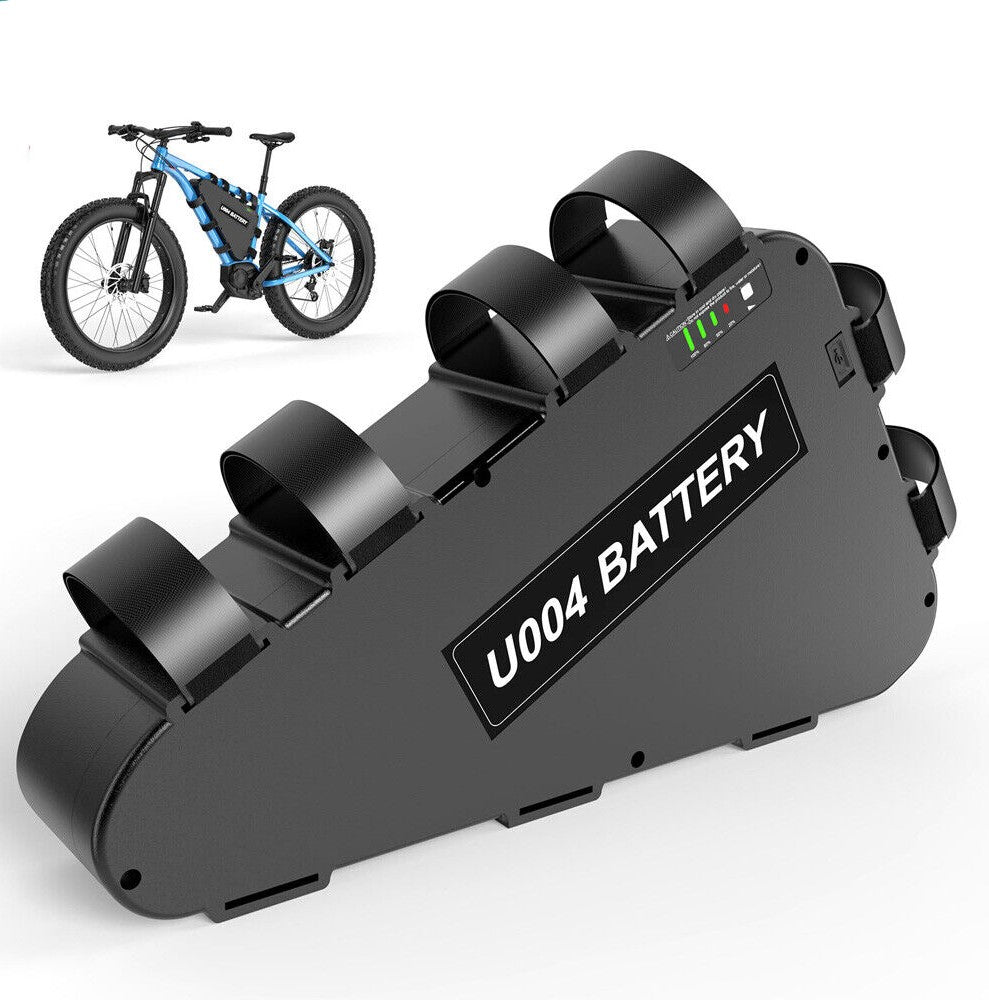

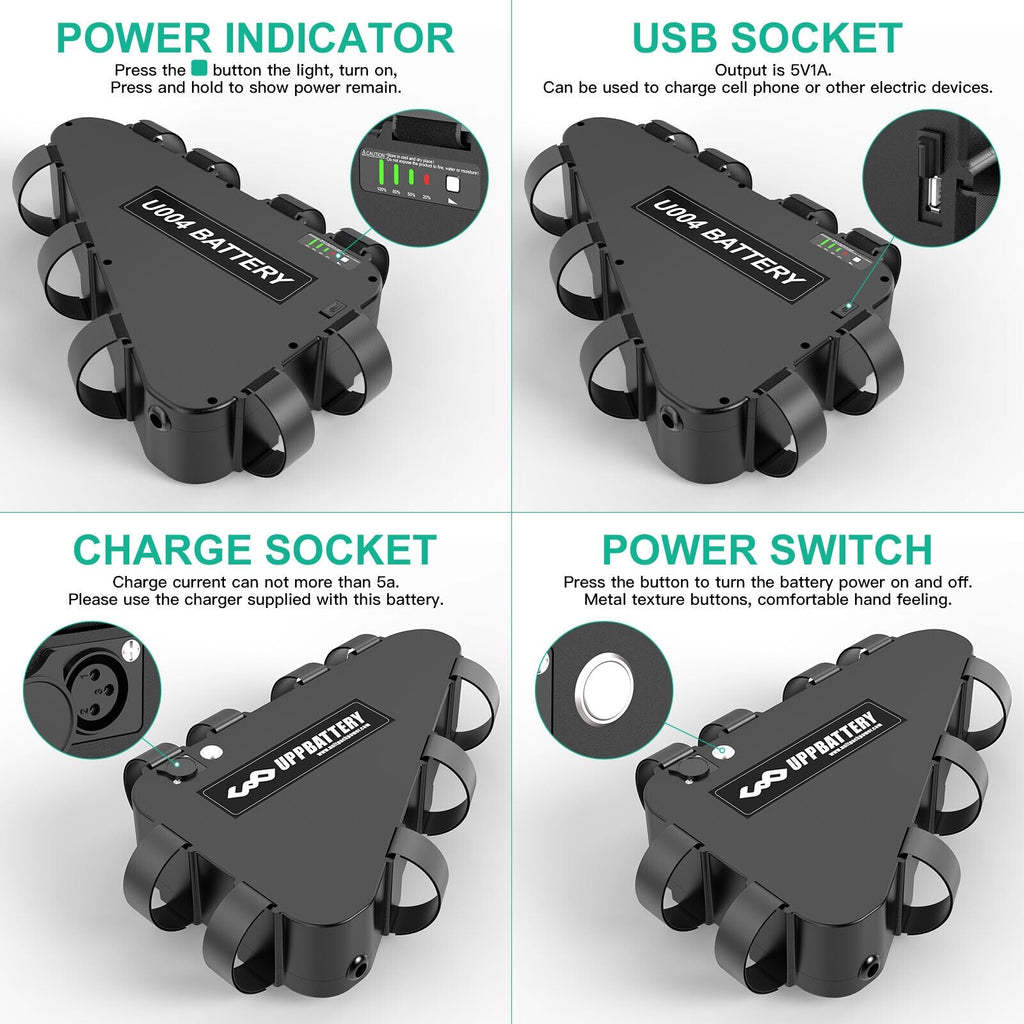

Triangle Case 72V 20Ah Lithium Ebike Battery for 1000W~3300W Motor

Sold out
Original price $824.95 - Original price $824.95
Original price
$824.95 - $824.95
Current price $824.95


  • Apply for: 72V 1000-3300W Motor
  • Nominal Voltage: 72V
  • Rated Capacity: 20Ah
  • Watt Hours:1440Wh

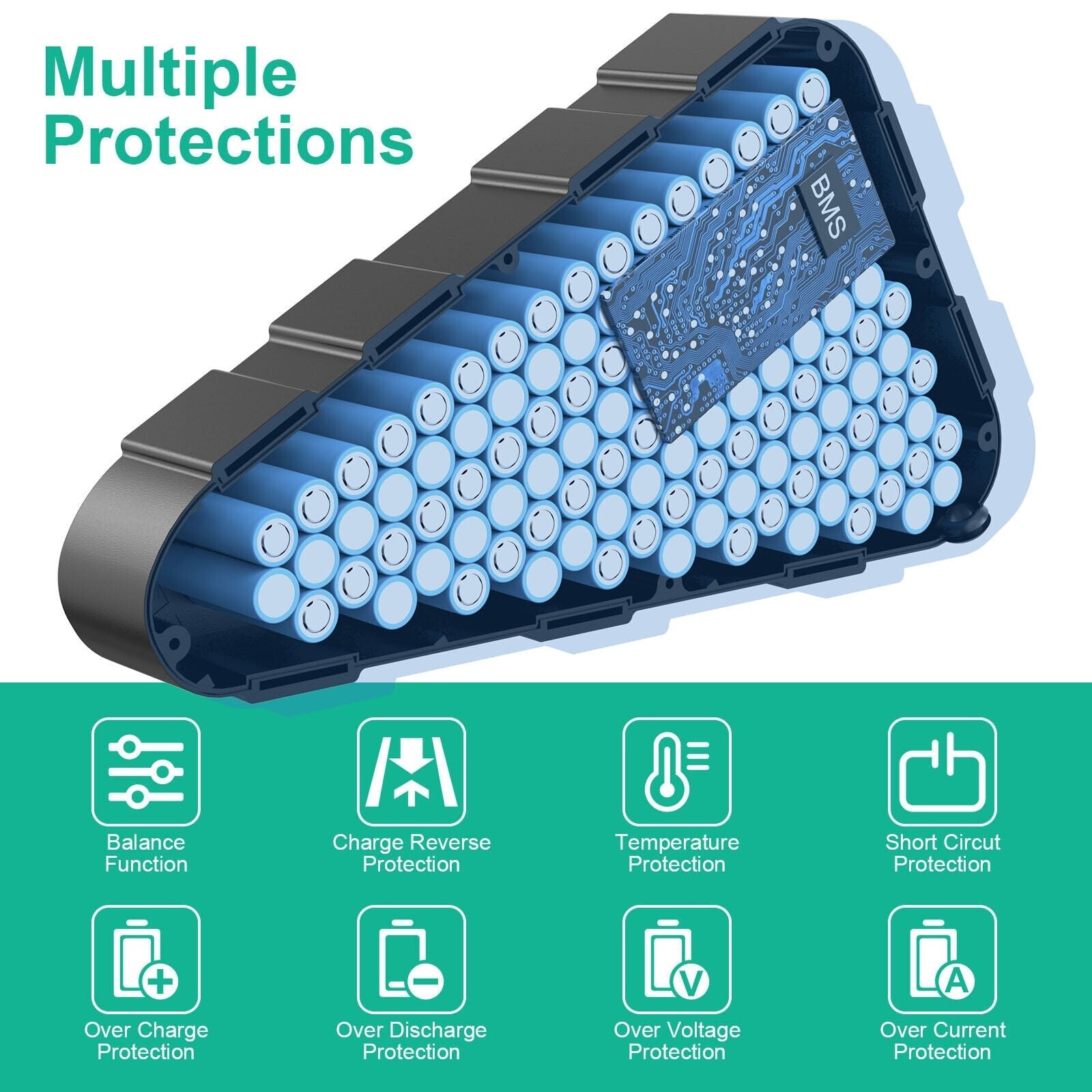

  • Configuration: 20S4P (80 cells)
  • Battery Cell: LG 21700 4800mah ,3C

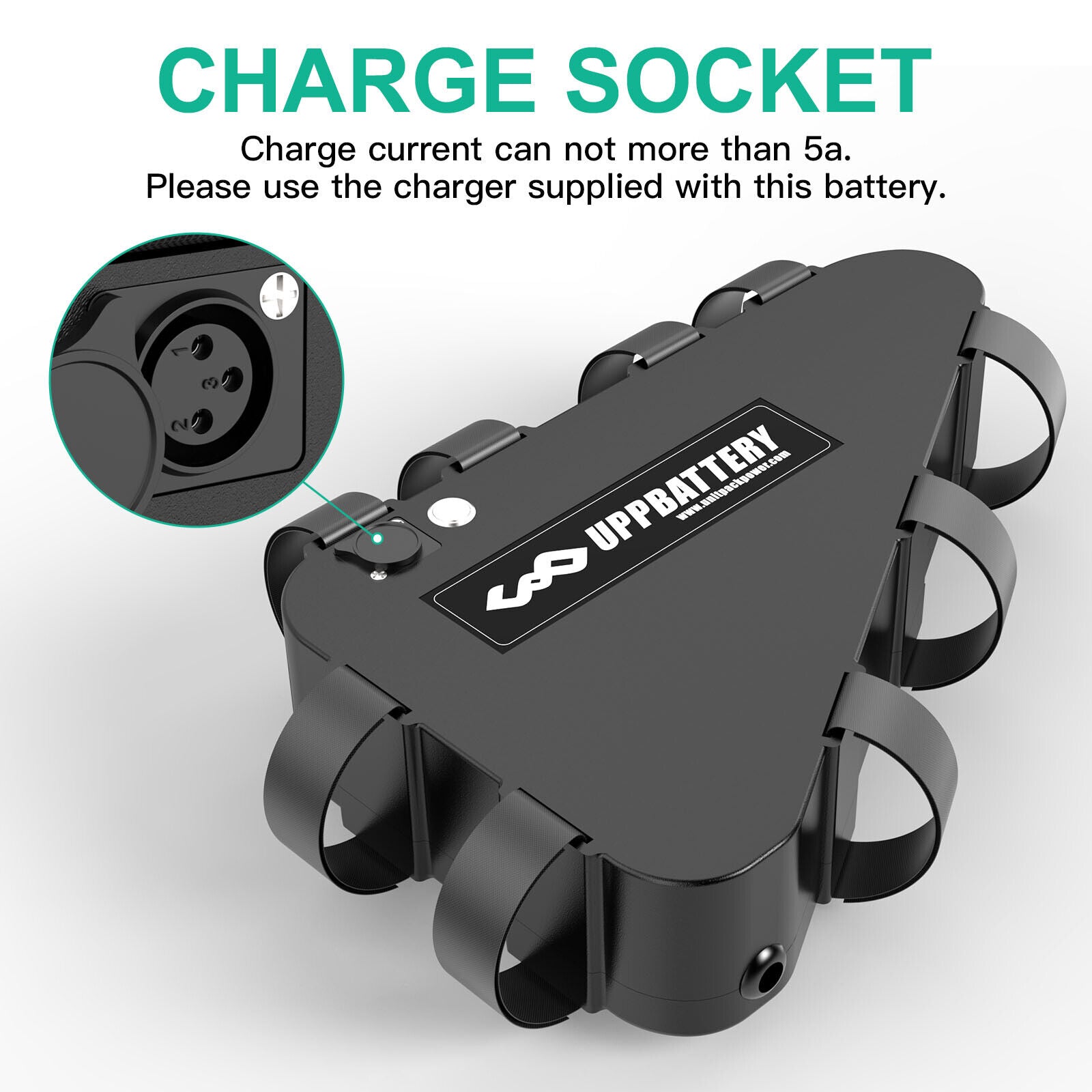

  • Max Continuous Charge Current: 5A
  • Max Constant Discharge Current:60A( BMS)
  • Peak Discharge Current: 180A
  • Charge Cut-off Voltage : 84V
  • Discharge Cut-off Voltage : 56V~60V
  • Battery Dimensions :394mm*364mm*64mm*232mm*81mm  (15.5*14.3*2.5*9.13*3.2inch )
  • Battery Weight: 6.7kg (14.78 lbs)
  • WIth Charger : 84V 4A

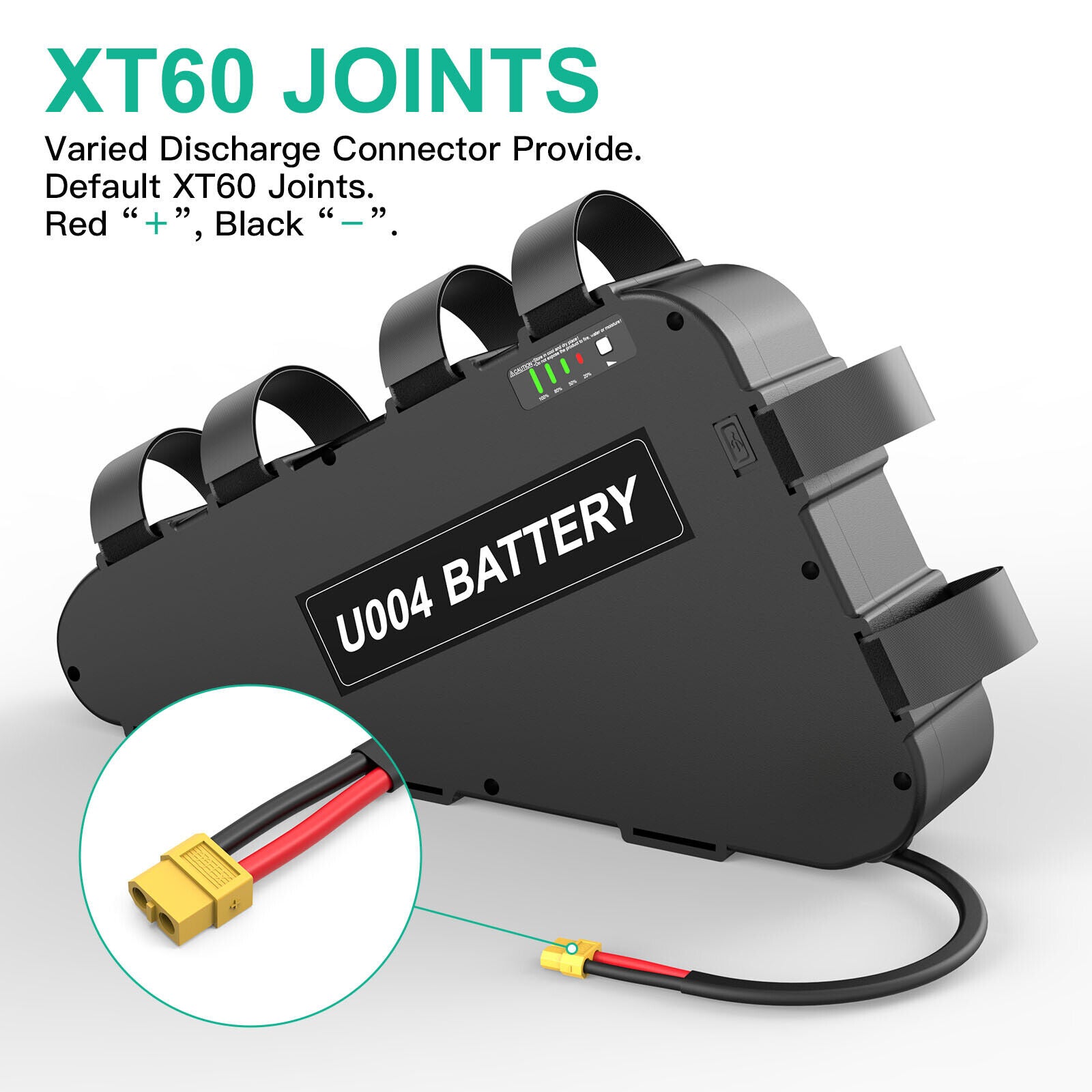

  • Discharge:XT60 (Male&Female)

Note : Our battery can fit most motor kit ,for example: Bafang, Voilamart, Tongsheng, but exclude these four : BOSCH , SHIMANO, YAMAHA ,Panasonic.

DAILY MAINTENANCE (Charge and discharge)

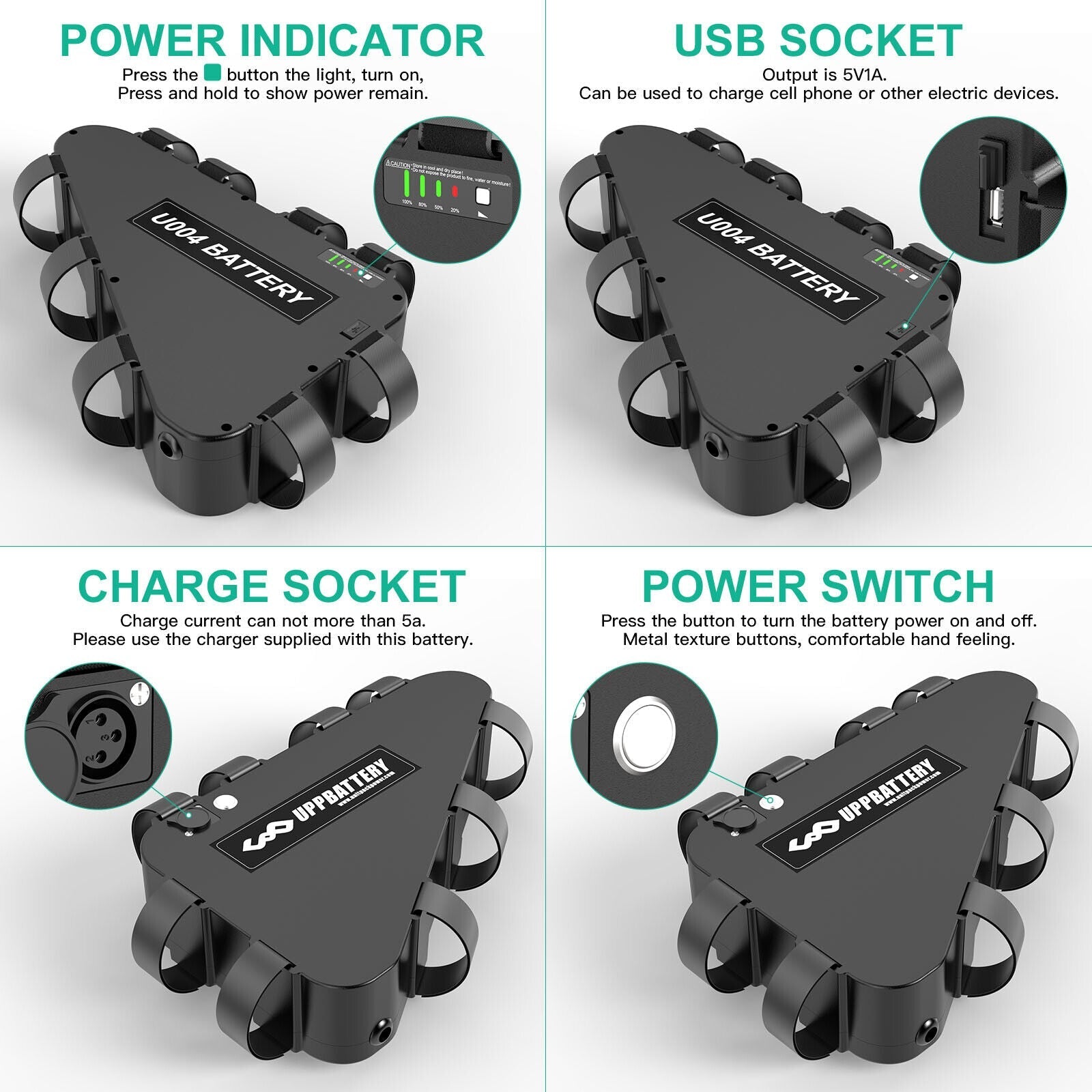

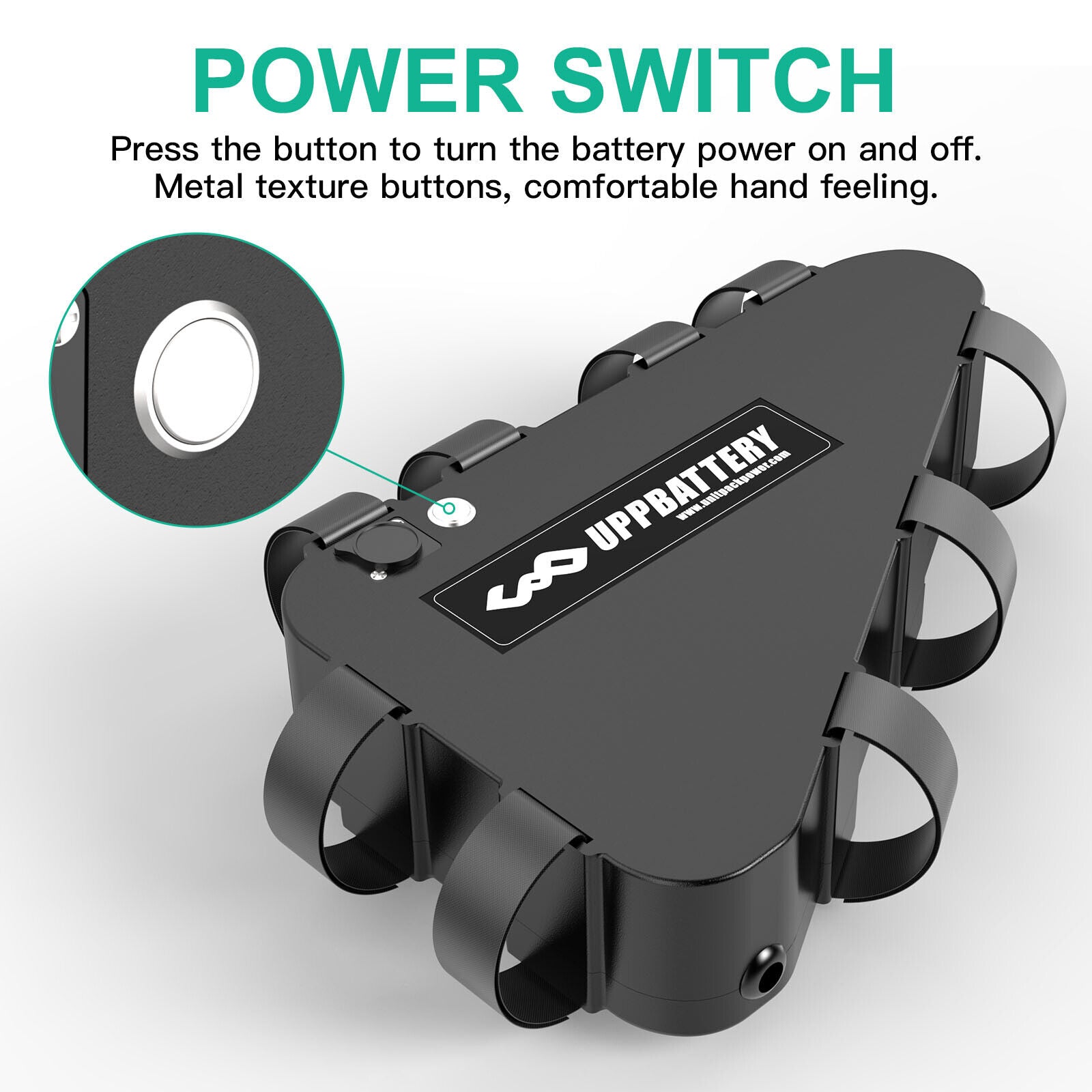

  • If the battery has a power switch, please open it during charging , can help to charge more full.
  • The lithium battery can be charged at any time, it is not necessary that all energy is exhausted before charging .


  • Do not immerse the battery in water or seawater. Store the battery in a cool, dry environment.
  • The battery should not be used near a heat source as a fire or heater.
  • Use the charger specifically for charging.
  • Do not interchange the positive and the negative terminals.
  • Do not connect the battery electrodes to a power outlet.
  • Do not throw the battery in fire or heating.
  • Do not short-circuit the battery by connecting the positive and negative poles directly to metal objects.
  • Do not carry or store the battery with metal objects such as hairpins, necklaces, etc.
  • Do not hit the battery, throw any trampling damage or throw it.
  • Do not solder the battery directly and do not pierce it with a nail or other sharp object.
